Description

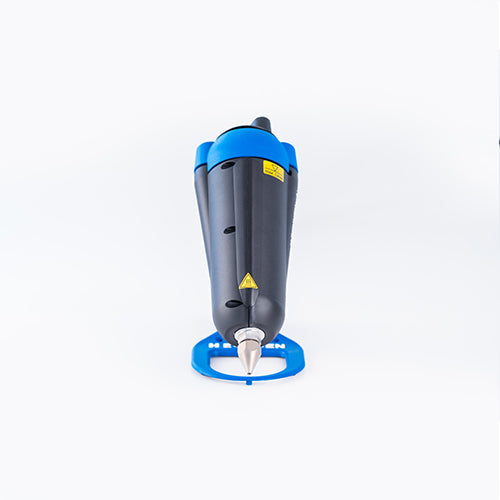

The Bühnen HB 450 Bead is a professional pneumatic-assisted handheld hot melt applicator designed for straightforward, reliable bead application in industrial environments. Operating at a fixed temperature of 190°C (376°F), the HB 450 is an excellent choice for applications that do not require adjustable temperature control.
The versatile melt tank accommodates hot melt adhesives in granule, pillow, or 42 mm cartridge formats, providing flexibility across a variety of production and assembly applications. Its ergonomic grip, balanced weight distribution, and pneumatic-assisted operation make the HB 450 comfortable and easy to operate during repetitive use.
Features
- Fixed Operating Temperature – Factory-set at 190°C (376°F) for simple, consistent operation without temperature adjustments.
- Multiple Adhesive Formats – Compatible with hot melt granules, pillows, and 42 mm cartridges.

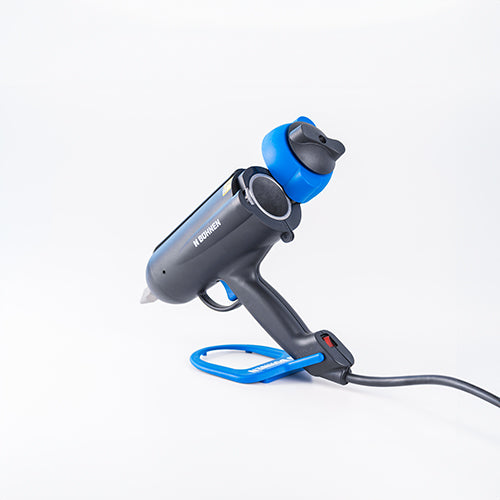

- One-Handed Melt Chamber Access – Convenient one-handed opening and closing for easier adhesive loading.
- Ergonomic Design – Comfortable grip with excellent balance and weight distribution for improved handling.
- Pneumatic-Assisted Operation – Helps reduce operator effort during repetitive industrial applications.
- Illuminated On/Off Switch – Provides a clear visual indication of the applicator's operating status.

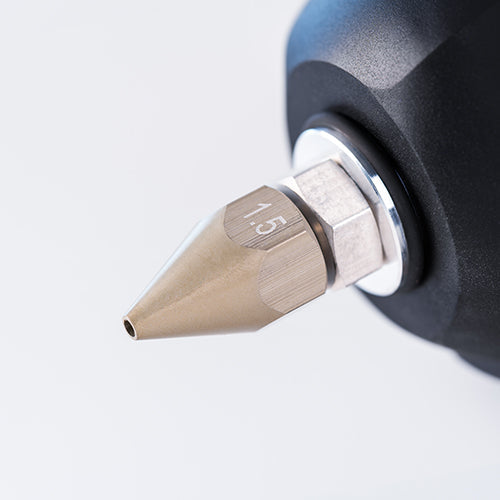

- 1.5 mm Bead Nozzle – Supplied standard with a 1.5 mm conical bead nozzle for controlled adhesive dispensing.
- External Air Regulator Required – Requires an external air regulator for operation. Air regulator is not included.
Technical Specifications
- Tool Weight: 1.35 kg (3.0 lbs)
- Voltage: 110V
- Power: 600W
- Operating Temperature: Fixed at 190°C (376°F)
- Melt Tank Capacity: 200 mL (6.7 fl. oz.)
- Maximum Output with 42 mm Cartridges: 3.2 kg/hr (7.0 lbs/hr)
- Maximum Output with Granules: 1.3 kg/hr (2.86 lbs/hr)
- Standard Nozzle: 1.5 mm conical bead nozzle
- Compatible Adhesive Formats: Granules, pillows, and 42 mm cartridges
- Operation: Pneumatic-assisted
- Air Regulator: Required; sold separately
