Description
The Bühnen HB 720 is a professional handheld spray hot melt applicator designed for demanding manual applications in industrial environments. Combining improved ergonomics, precise digital temperature control, and pneumatic-assisted operation, the HB 720 delivers a controlled and consistent spray pattern while reducing operator fatigue.
Its versatile melt chamber accommodates hot melt adhesives in granule, pillow, or 42 mm cartridge formats, giving users greater flexibility when selecting adhesives for different applications.
Key Features

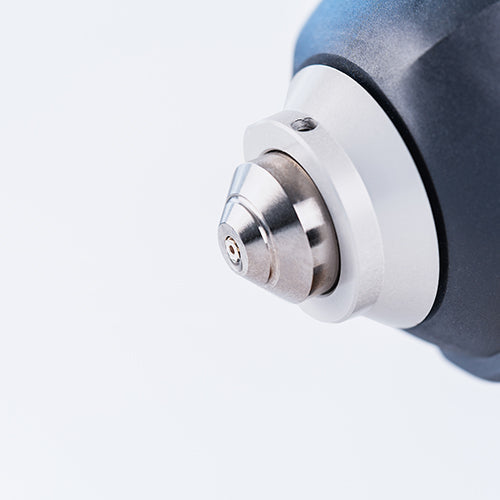

- Controlled Spray Application – Produces a consistent spray pattern with tool-free pattern adjustment for greater application control.
- Wide Temperature Range – Adjustable from 40°C–210°C (104°F–410°F) with precise temperature control of approximately ±1°C (±3°F).
- Adhesive Level Monitoring – Integrated level sensor displays the amount of adhesive remaining in the melt tank.
- Versatile Adhesive Formats – Compatible with hot melt granules, pillows, and 42 mm cartridges.
- Pneumatic-Assisted Operation – Helps reduce operator effort during repetitive industrial applications.
- Ergonomic Design – Comfortable grip with improved balance and weight distribution for easier handling.

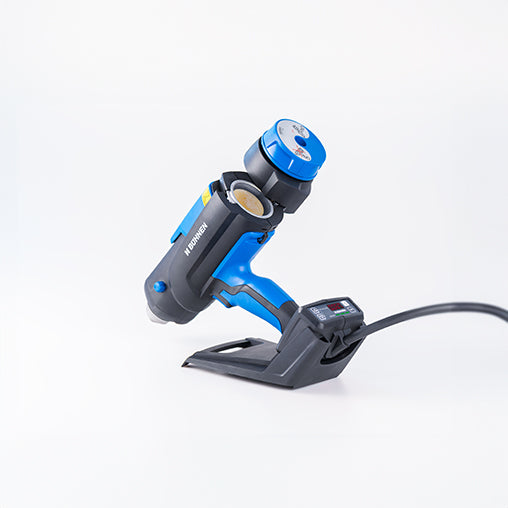

- One-Handed Melt Chamber Access – Melt chamber can be opened and closed with one hand for convenient adhesive loading.
- Automatic Temperature Reduction – Lowers temperature during periods of inactivity to conserve energy and help protect the adhesive from unnecessary heat exposure.
Technical data:
Tool weight: 1.35 kg/3 lbs
Voltage: 110 volt
Wattage: 600
Capacity: 200 ML/6.7 ounces (liquid)
Output: 3.2 KG/ 7 lbs per hour with glue cartridges or 1.3 KG/2.86 lbs per hour with granules
